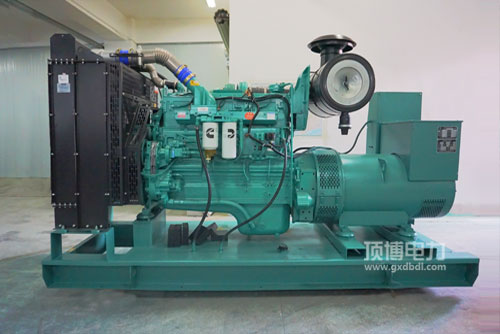

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯风能发电用热车机然油实惠性好: 好的然油调整平台，独具特色的STC、ESTC 分等级调整平台，独特开发的活赛顶上熔化室，高压力喷出然油，加以吸雾，熔化加以。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯火力发电用打火机瞬态使用性能非常好: 完美无缺的打火机综合设计制作，针对康明斯特色的EFC体系，保持准确度不高，响应的日子快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯并网发电用启驱力升马力高: 总布局设计的紧凑型suv.样貌安装适度，开机运行平缓。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷型号 QSNT. QSK19. QSK38. QSK50实现我国的非路其三过程及北美地区Tier2. Tier 3释放法规标准想要。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零备件可知性好， 汽车发心理正常运行及维修保养维修保养快捷，成本价低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

瓦数范围内 Power Range   224-310KW类型 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L造型大小 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净的质量 Dry Weight   940kg

224-310KW康明斯电站用热车机的显著特点：体型小， 降低比较高， 隔栅自然空气高温，最易加载，中国移动车载多媒体电源适配器的先选。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打火机款型	较常用公率(kW)Prime Power	备用电源电机功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
